This article explains how to use static IP addresses to automatically place your miners in Site Map locations. You'll add an IP Address item in Infrastructure, then upload a CSV that matches each IP address to a rack position.
Before you start: You need a completed Site Map layout in Foreman. If you haven't built one yet, see How To: Create Site Map With CSV Upload.
Step 1: Add the IP Address attribute to Infrastructure

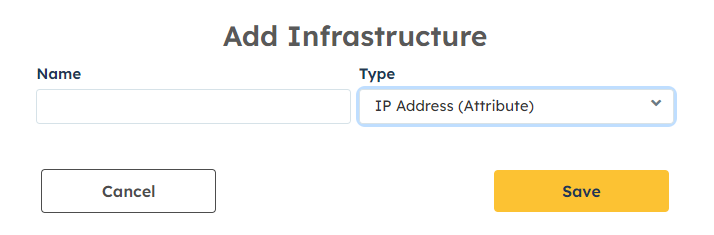

First, add an item to the Infrastructure tab for the IP Address attribute. This is what lets you upload associations between IP addresses and Site Map locations in the next step.
Step 2: Download the CSV template
- At the top of the Infrastructure screen, click Upload Associations.
- Select IP Address - IP Address from the dropdown list.
- Download the CSV template file.
Step 3: Fill out the CSV
Your CSV must include all of the following columns for the upload to succeed:
| Column | What to enter |
|---|---|
| Name | The name you gave the IP Address item when you created it on the Infrastructure tab. |
| Association Type | Location |
| Association Name | The name of the Site Map group you want to associate the miners with. |
| Identifier | The static IP address assigned to the miner. |
| Location Row | The rack row where the miner with that IP address should be placed. |
| Location Index | The position within that row where the miner should be placed. |
Step 4: Upload the CSV
- In the Upload Associations window, click Choose File and select your completed CSV.
- Click Upload.
If everything in your CSV was entered correctly, your miners will appear in the specified locations on the Site Map tab.
